Documentation

UploadModification

UploadModification[myModificationName]⟹modificationModel

creates a new Model[Physics,Modification] object modificationModel with the name 'myModificationName'.

UploadModification[myModificationObject]⟹modificationModel

updates the pre-exisiting object myModificationObject.

Details

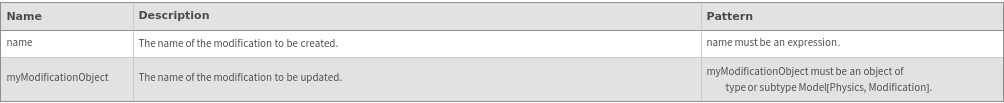

Input

Output

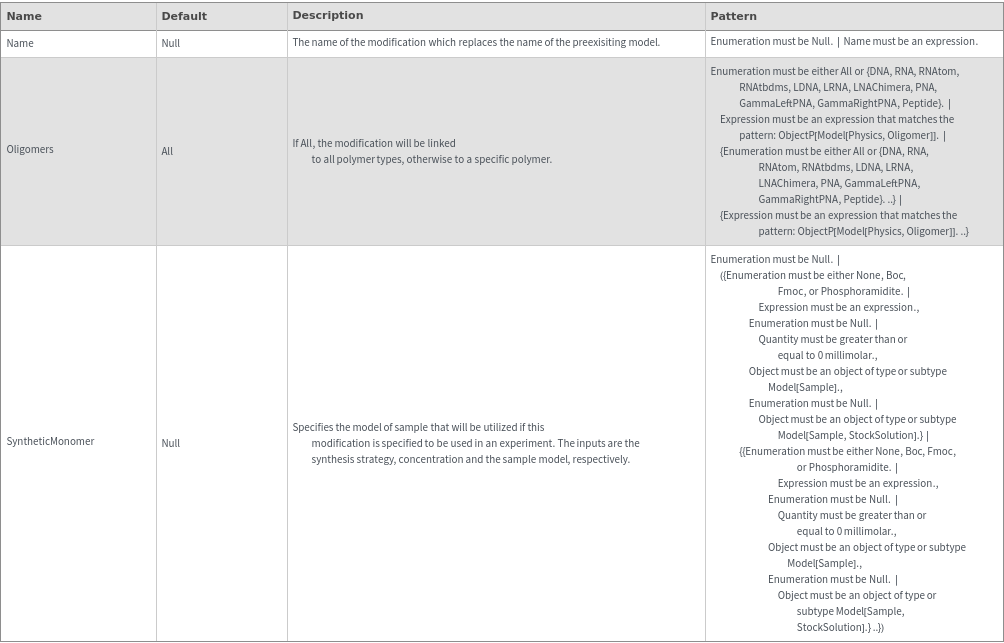

Model Information Options

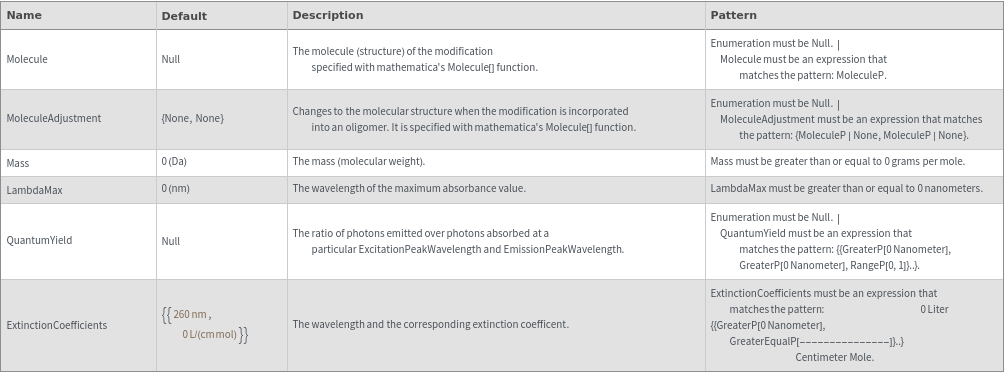

Physical Property Options

Examples

Basic Examples (3)

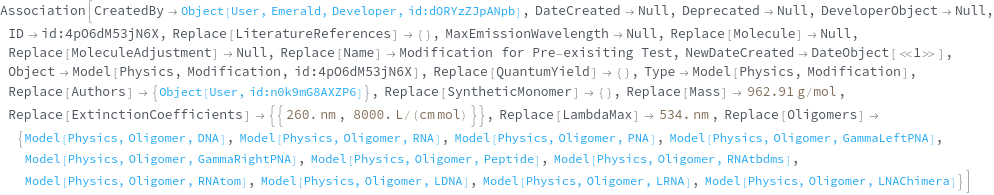

Uploading a test modification with the molecular weight equivalent to Tamra:

Uploading a test modification with the molecular weight and extinction coefficient equivalent to Fluorescein:

Uploading a test modification with the molecular weight, extinction coefficient, and lambdaMax equivalent to BHQ-1:

Additional Examples (2)

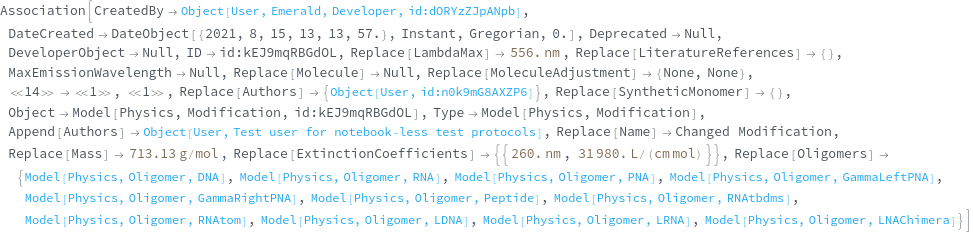

Changing a field for a pre existing modification:

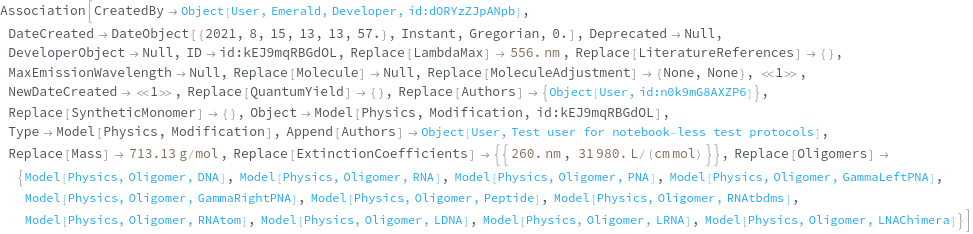

Changing a field for a pre existing modification with package format:

Options (10)

ExtinctionCoefficients (1)

Uploading a test modification with the extinction coefficient that is equivalent to Tamra:

LambdaMax (1)

Uploading a test modification with the properties that are equivalent to those of Tamra:

Mass (1)

Uploading a test modification the molecular weight that is equivalent to Tamra:

Molecule (1)

Uploading the molecular structure for a test modification with Puromycin structure:

MoleculeAdjustment (1)

Uploading the molecular structure for a test modification with Puromycin structure:

Name (1)

Renaming a preexisting model modification and change the fields:

Oligomers (1)

Specifying the model oligomer that the modification should be attached to:

QuantumYield (1)

Uploading a test modification with specifying the QuantumYield (0 in this case as the information is not available but any value between 0 and 1 is acceptable):

SyntheticMonomer (1)

Uploading the synthetic monomer (Model[Sample]) for a test modification with Puromycin structure:

Upload (1)

Returning the modification as a packet instead of uploading to the Constellation:

Messages (1)

ModificationDoesNotExist (1)

The object does not exist (not available in the database):
