Documentation

UploadResin

UploadResin[myInputs]⟹resinModel

creates/updates a model resinModel that contains the information given about the resin.

UploadResin[myResinName]⟹resinModel

returns a new model resinModel that contains the information given about the resin.

UploadResin[myResinObject]⟹resinModel

updates an existing model resinModel that contains the information given about the resin.

Details

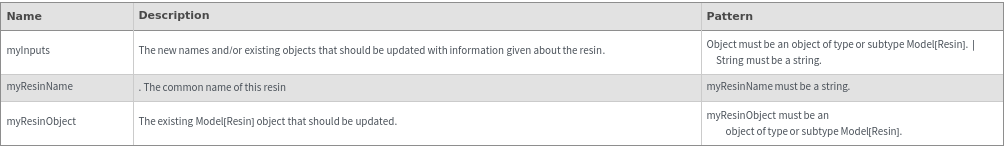

Input

Output

Compatibility Options

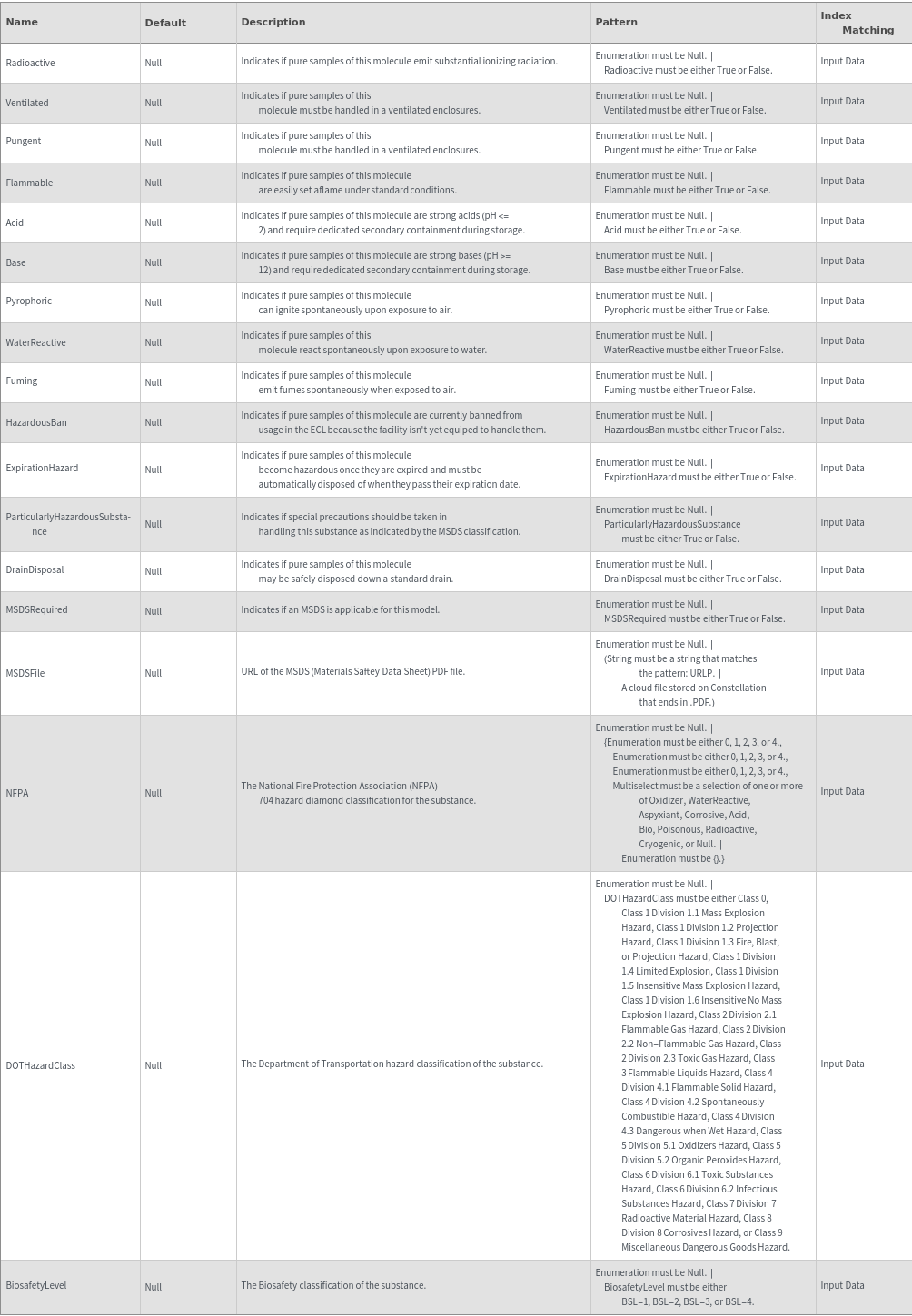

Health & Safety Options

Model Information Options

Organizational Information Options

Physical Properties Options

Storage Information Options

Examples

Basic Examples (2)

Upload a new resin:

Upload multiple new resins:

Additional Examples (1)

Modify an existing resin:

Options (15)

CAS (1)

Specify the Chemical Abstracts Service (CAS) registry number for the resin:

DefaultSampleModel (1)

Specify the sample model that will be used when this resin is used in an experiment:

IUPAC (1)

Specify the International Union of Pure and Applied Chemistry (IUPAC) name for the resin:

Linker (1)

Specify the linker structure of the resin:

Loading (1)

Specify the active sites per weight of resin:

Molecule (1)

Specify the chemical structure for the resin:

Name (1)

Define a name for the resin:

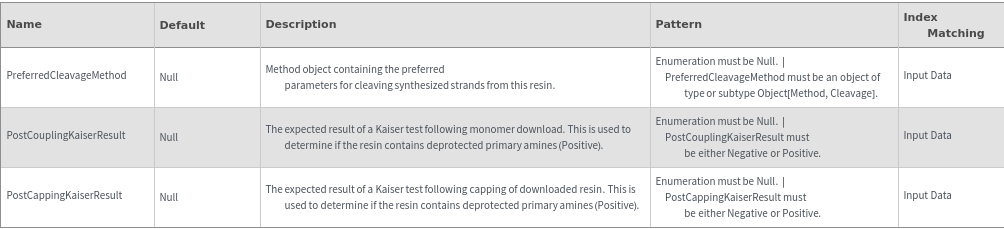

PostCappingKaiserResult (1)

Specify the result of a Kaiser test following capping of downloaded resin:

PostCouplingKaiserResult (1)

Specify the result of a Kaiser test following monomer download from this resin:

PreferredCleavageMethod (1)

Specify the method object containing the preferred parameters for cleaving synthesized strands from this resin:

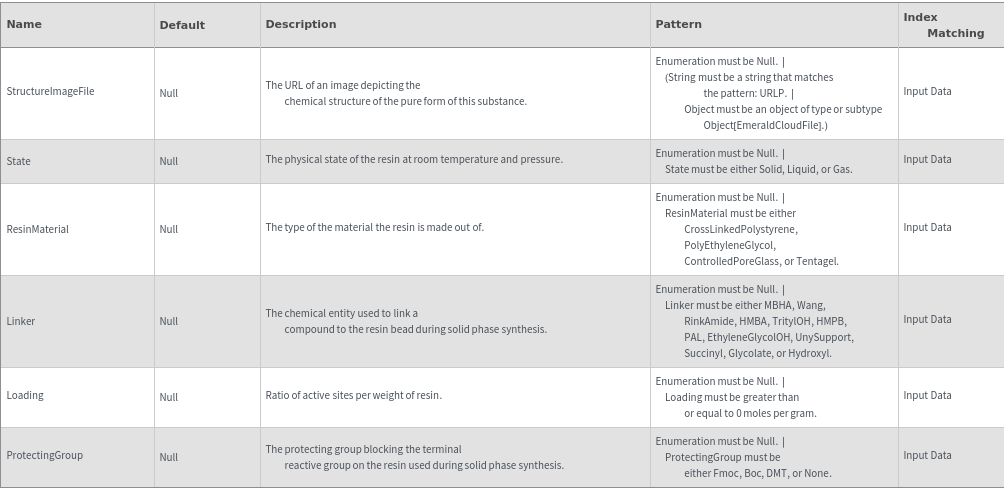

ProtectingGroup (1)

Specify the protecting group of the resin:

ResinMaterial (1)

Specify the material of the resin:

State (1)

Specify the state of the resin:

StructureImageFile (1)

Specify the International Union of Pure and Applied Chemistry (IUPAC) name for the resin:

Synonyms (1)

Specify the synonyms for a resin:
